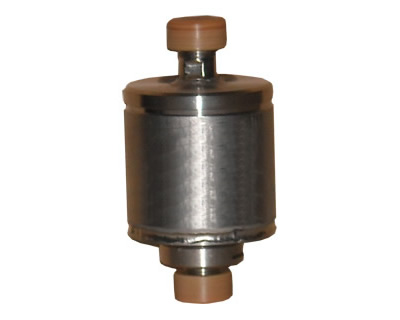

Aerosol gas filters FAG and FAGM
Aerosol gas filters FAG and FAGM are used for fine purification of air and other nonaggressive gaseous process media from dust and other mechanical impurities.

Specifications of gas filters FAG and FAGM
FAGM-0,4 |
FAGM-0,8 |
FAG-1,5 |
FAG-3 |
FAG-6 |
FAG-25М |
FAG-50М |
|
Capacity, m3/hour |
0,4 |
0,8 |
1,5 |
3 |
6 |
25 |
50 |
Temperature of raw gas, °С |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
The size of trap particles, micron |
0,3 |
0,3 |
0,3 |
0,3 |
0,3 |
0,5 |
0,5 |
Dimensions (length х diameter), mm |
60 x 73 |
65 x 95 |
130 x 80 |
160 x 80 |
220 x 80 |
300 x 270 |
300 x 360 |
Weight, kg |
0,35 |
0,53 |
1 |
1,2 |
1,4 |
8,25 |
12 |
Pressure, MPA (kgs/sm2) |
0,2 (2) |
0,2 (2) |
0,2 (2) |
0,2 (2) |
0,2 (2) |
0,3 (3) |
0,3 (3) |
Connecting sizes |
M16 x 1,5 |
M20 x 1,5 |
Flange connection Dn=45 mm |
Our company Prizma LLC can develop and manufacture other equipment similar to the existing equipment but with different capacity.
